Manage GitOps Applications

You can manage your applications through the Applications found in GitOps Overview page.

New Applications​

Create a new application by click +New Application in the top right. To learn more about creating applications, go to Add a Harness GitOps Application

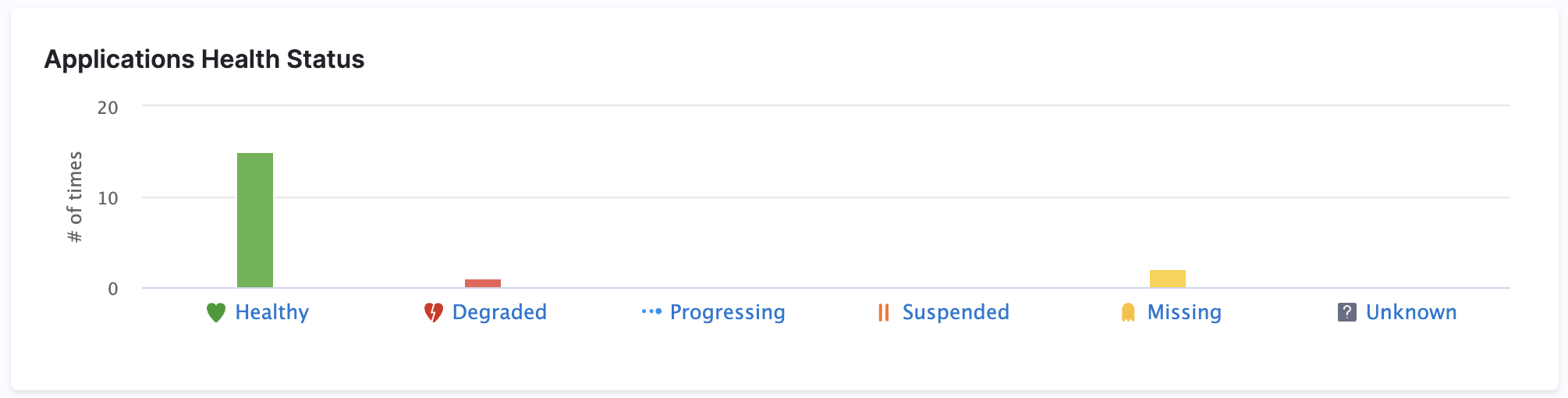

Applications Health Status Graph​

On the GitOps Overview page, you’ll find the Applications Health Status bar chart, which shows how many applications are in each of these states:

  • Healthy: Running without issues
  • Degraded: Experiencing reduced functionality
  • Progressing: Currently deploying or reconciling
  • Missing: No longer found in the cluster
  • Suspended: Paused or not actively reconciled

Each status bar is clickable. Click any bar (for example, Healthy) to open the Applications Dashboard filtered to show only applications in that state.

Application Operations​

Applications are displayed on this page as a series of tiles. You can change this to a list of rows in the top right.

Each application will display various helpful information such as the application repository or a name and link to the GitOps Agent.

Each tile will have 3 vertical dots. Clicking this will allow you to manually Sync, Refresh, or Delete the application.

See the following to learn more about some of these operations:

Filter Applications​

At the top you can filter your applications using a search bar and application attributes.

Create and Save Filters​

You can also create and save custom filters so that you can make sure you're only looking at relevant applications consistently.

note

This feature is currently behind the feature flag GITOPS_FILTER_PANE_ENABLED. To enable this feature, contact Harness Support

To create and save a filter, do the following:

  1. Create a filter by doing any of the following:
    • Add a custom search term
    • Choose to filter by Agents, Sync Status, Health Status, Labels etc.
    • Add an additional filter field by clicking the +Add Filter button.
  2. Click Save
  3. Enter a name for the filter, and choose if you want it visible to Only me or Everyone in the scope.

You can then load the filter any time by clicking the filter icon to the right of Reset and searching for your saved filter.

Filter by Application Labels​

You can filter applications by their labels.

  • Exact match (Key:Value)

    • If you want to match specific applications, you can do an exact match using Key:value in the labels.
    • You can add labels to an application in the App Details page.

  • Partial match (Key or Value)

    • Search using a key or value.
    • Partial matches are supported. For example, if a label key is team or a value is payment-service, searching for tea or pay will return that application.
    • The search also considers the Service name and Environment name associated with the GitOps application as labels, and will match them in partial searches.

Application Management Dashboard​

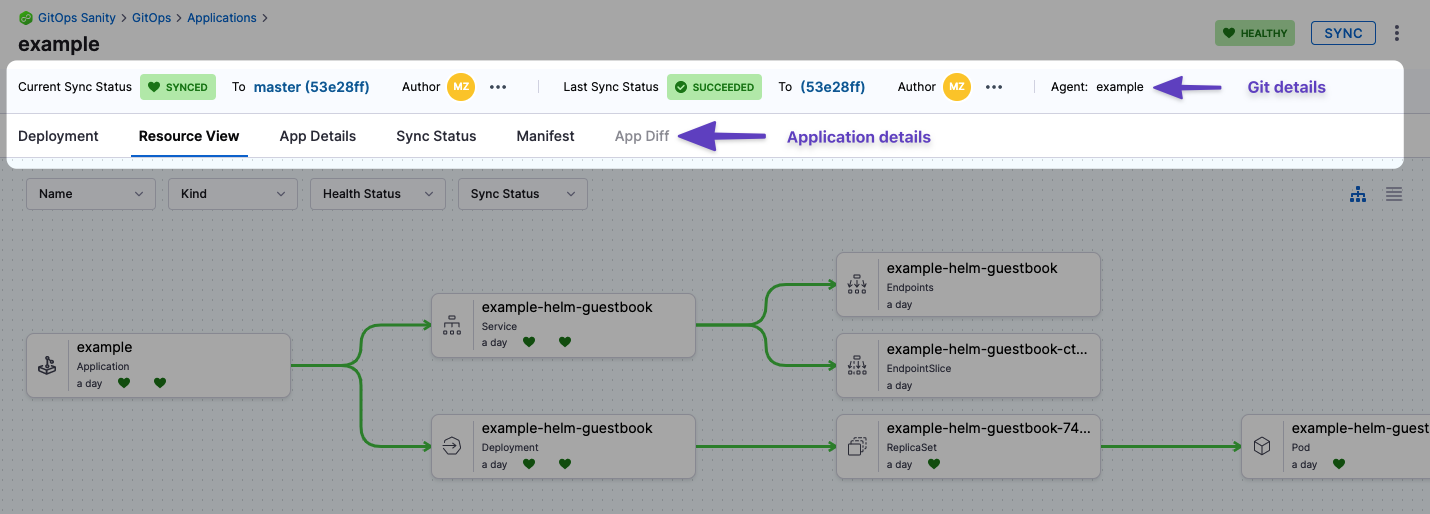

After you select an application, you will see the application dashboard:

  • Git details: you can see the Git commit used as the source for the sync. Clicking the commit Ids opens the commit in the source provider.

  • Deployment: the deployments dashboard shows when the Application was deployed (synced).

  • Resource View: displays the desired to target state mapping of each Kubernetes object. The Resource View lets you inspect the live target infrastructure by:

    • Name: Kubernetes object names.
    • Kind: Kubernetes object types.
    • Health Status: the health status of the Application. For example, is it syncing correctly (Healthy)?
    • Sync Status: sort Kubernetes objects by their sync status.

    Select any item to see:

    • Overview: An overview of the resources properties, such as name, namespace, or sync status.
    • Events: Any events emitted by the pod.

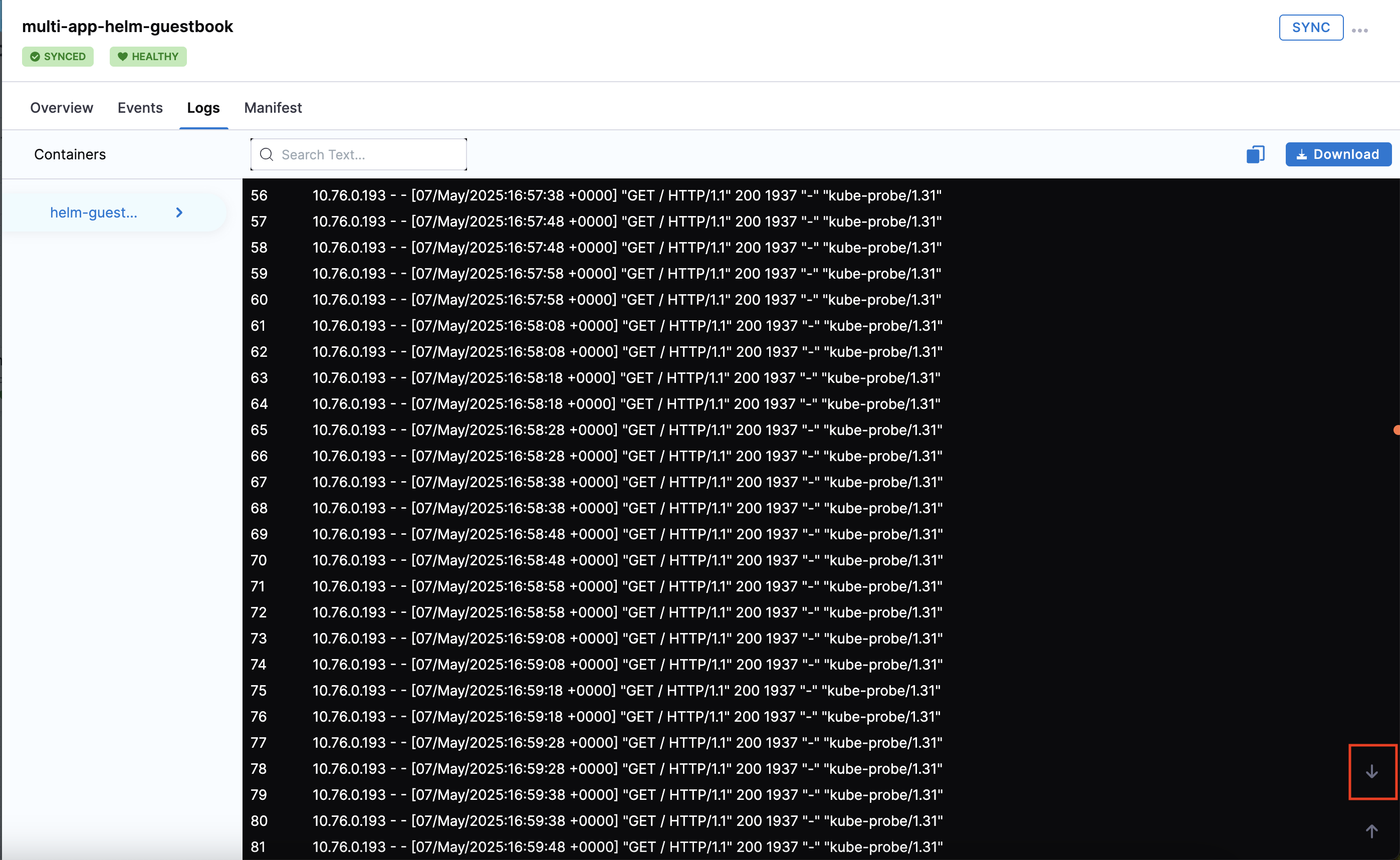

    • Logs: The logs of the resource. These logs are searchable, copyable, and downloadable. You can also view the log tail by clicking on the down arrow in the bottom right corner (click image below).
    • Manifest: The manifest of the resource.
    • Diff: The diff between the source manifest and application if they are out of sync.

  • App Details: displays the settings of the Application. You can edit the settings and apply your changes, including the Sync Options & Policy.

  • Sync Status: displays all of the sync operations performed by the Application.

  • Manifest: displays the manifest of the Application. This is not the same as the source manifest in the Git source repo.
    You can edit the manifest in Manifest and the changes are synced in the target infrastructure, but when you do a full sync from your source repo the state of the source repo overwrites any changes made in Manifest.

  • App Diff: displays a diff against the live state in the cluster and desired state in Git.

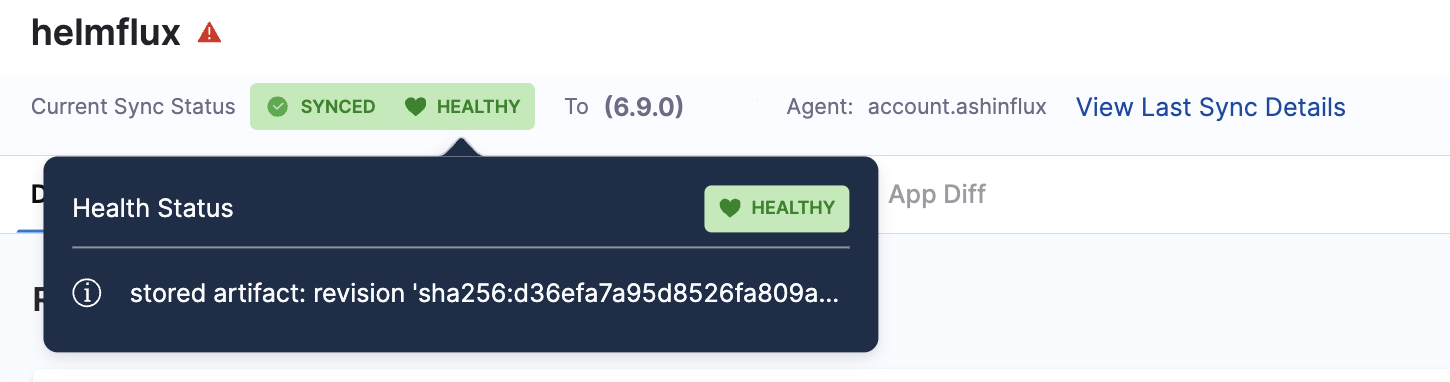

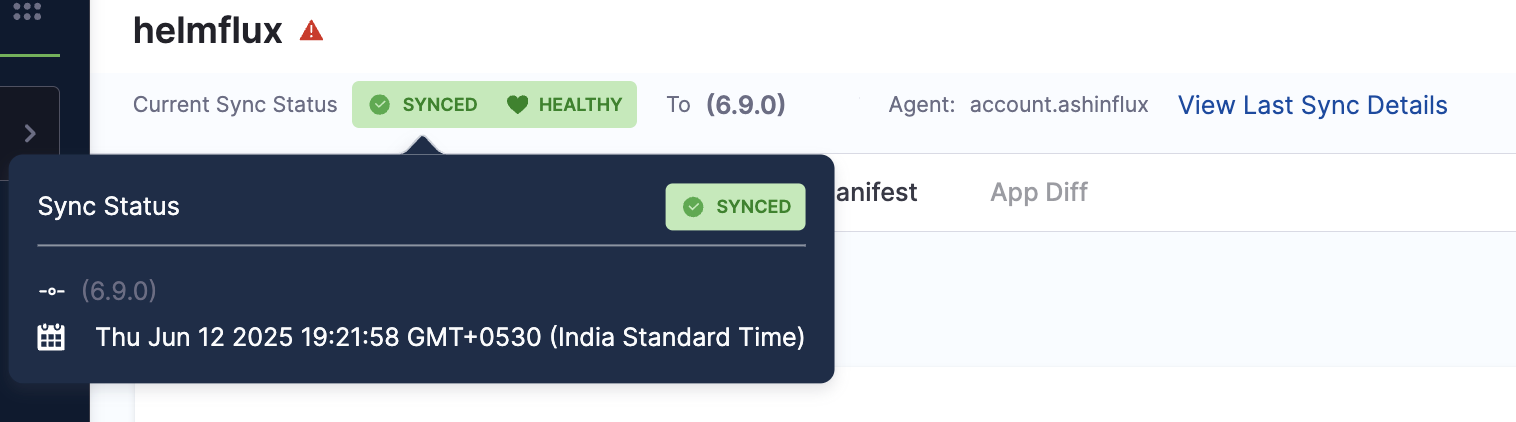

Health and Sync Status​

The Health And Sync status indicators now include extended metadata in a popover. Hovering over a status reveals additional context such as sync type, revision, and more. This allows you to quickly assess the application state without leaving the dashboard.

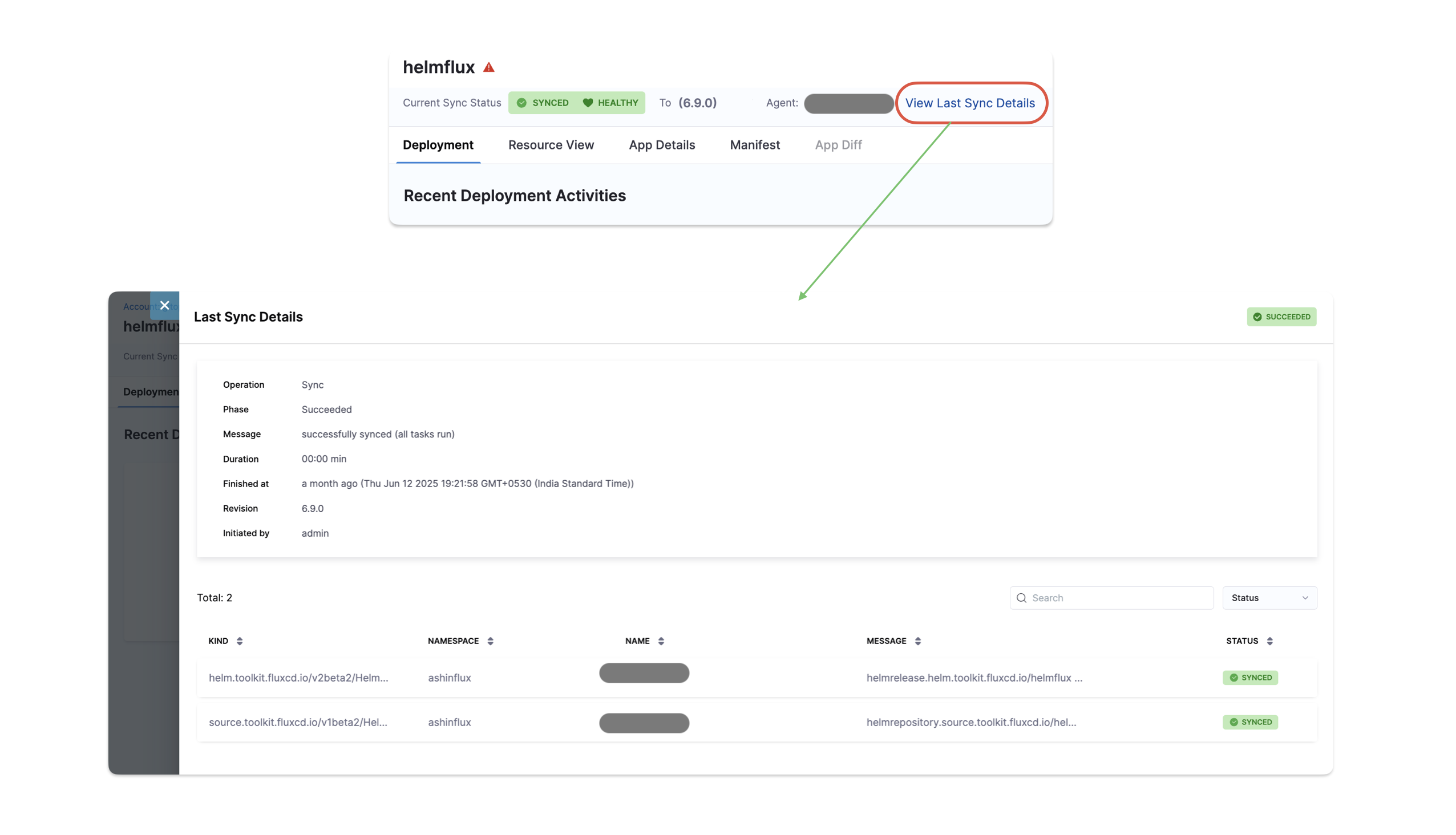

Last Sync Details​

Users can now view details like sync history, commit ID, sync result, and timestamps in a side drawer that opens directly from the application dashboard.

Application Configuration Options​

Ignore HPA Changes to Prevent Out-of-Sync Status​

When Horizontal Pod Autoscaler (HPA) is enabled, pod scaling can cause GitOps to detect unwanted differences and mark applications as out of sync.

To prevent this, configure the following in the application to ignore differences on replicas:

ignoreDifferences:
    - group: apps
      kind: Deployment
      jsonPointers:
        - /spec/replicas
    - group: apps
      kind: StatefulSet
      jsonPointers:
        - /spec/replicas
syncPolicy:
  syncOptions:
  - RespectIgnoreDifferences=true

Alternatively, you can add the following to the Argo ConfigMap:

apiVersion: v1
kind: ConfigMap
metadata:
  name: argocd-cm
data:
  resource.customizations: |
    apps/Deployment:^(app-with-hpa|hpa-enabled-.*|.*-autoscaled)$:
      ignoreDifferences: |
        jsonPointers:
        - /spec/replicas

For more details, see:

Harness Secret Expressions in Application Manifests​

note

This feature is behind the feature flag CDS_GITOPS_SECRET_RESOLUTION_ENABLED. Contact Harness Support to enable the feature.

Additionally, you must enable the Enable ArgoCD Harness Plugin (Required for Harness expression resolution) checkbox during GitOps agent installation to use this feature.

Currently, this feature only supports secrets that are configured in Harness and use either HashiCorp Vault or Harness Secret Manager as the secret storage backend. Other secret managers (such as AWS Secrets Manager, Azure Key Vault, or GCP Secret Manager) are not supported.

You can use Harness secret expressions directly in your Kubernetes manifests. When you reference a Harness secret in your YAML files, the secret is resolved and decrypted during the manifest rendering phase. The <+secrets.getValue()> expressions are only resolved and decrypted when they appear within a Kubernetes object of type Secret.

After the manifest rendering phase decrypts the secrets and shows the diff, you must sync the application to push the resolved secret values to the cluster.

To use Harness secrets in your manifests, you must first create the secrets in Harness at the account, org, or project level. Once created, you can reference them in your manifests using the appropriate expression syntax based on the secret's scope:

  • Account-level secrets: <+secrets.getValue("account.secret_id")>
  • Org-level secrets: <+secrets.getValue("org.secret_id")>
  • Project-level secrets: <+secrets.getValue("secret_id")>

Example manifest with Harness secrets:

apiVersion: v1
kind: Secret
metadata:
  name: redis-db-vals
stringData:
  # Account-level secret
  secretfordb: <+secrets.getValue("account.vaultsecret")>
  # Account-level secret
  username1: <+secrets.getValue("account.secret2HSM")>
  # Org-level secret
  orgSecret: <+secrets.getValue("org.apikey")>
  # Project-level secret
  projectSecret: <+secrets.getValue("dbpassword")>

In this example:

  • account.vaultsecret and account.secret2HSM are secrets configured at the account level
  • org.apikey is a secret configured at the org level
  • dbpassword is a secret configured at the project level
  • The secret expressions are resolved and decrypted when ArgoCD renders the manifests
  • Since stringData is used, the values are base64-encoded before being stored in the cluster
  • Secret values are masked in the Harness UI for security
Security Considerations

ArgoCD caches the manifests generated by plugins, along with the injected secrets, in its Redis instance. To mitigate security risks, implement network policies to restrict access to ArgoCD components (Redis and repo-server) and consider running ArgoCD on a dedicated cluster. For more information, refer to the ArgoCD Secret Management documentation.
